Progressive Cavity Pumps

Nevada’s heavy-duty progressive cavity (PC) pump kits are built to handle dairy effluent irrigation and proven as the best on the market. With high pumping efficiency and reduced operating costs, you’ll be saving time and money in no time.

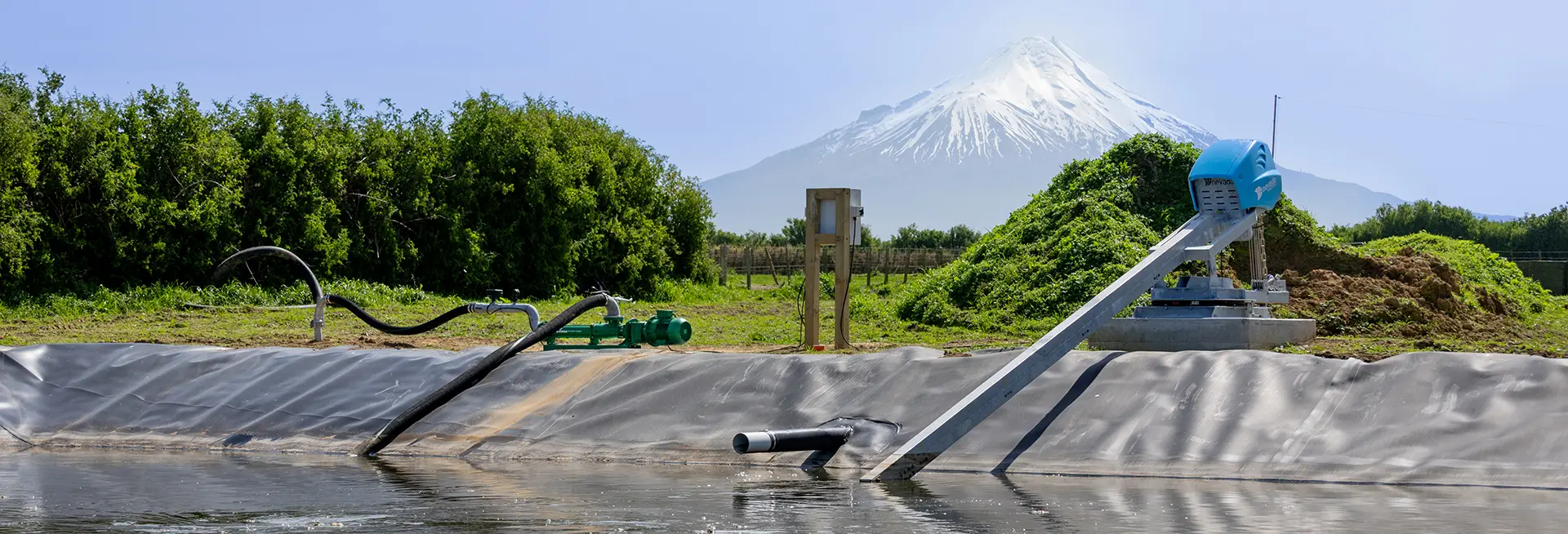

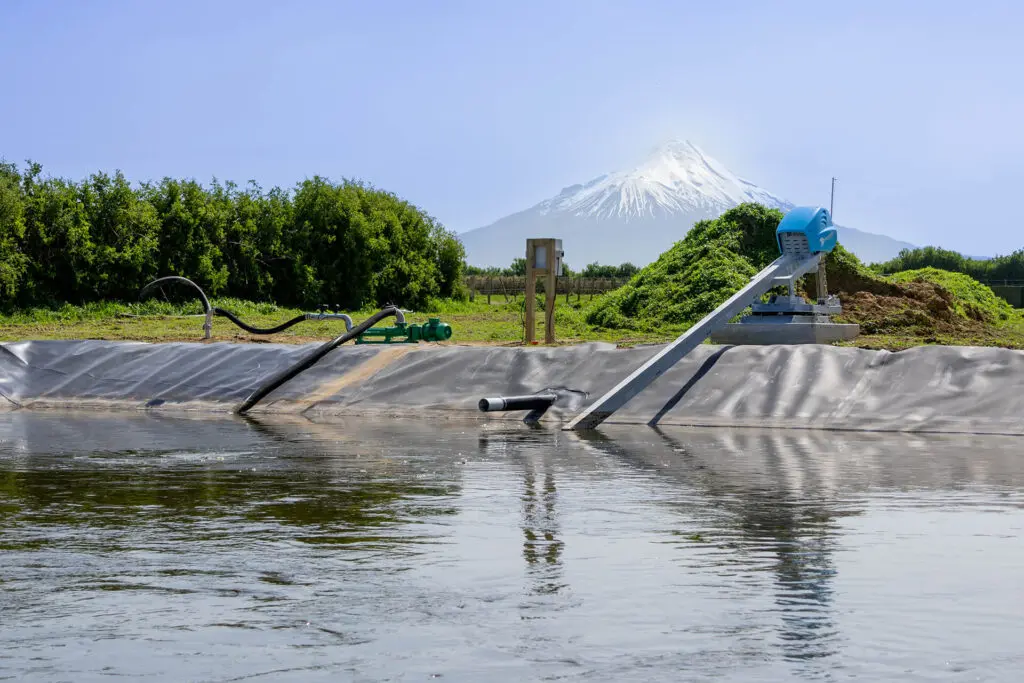

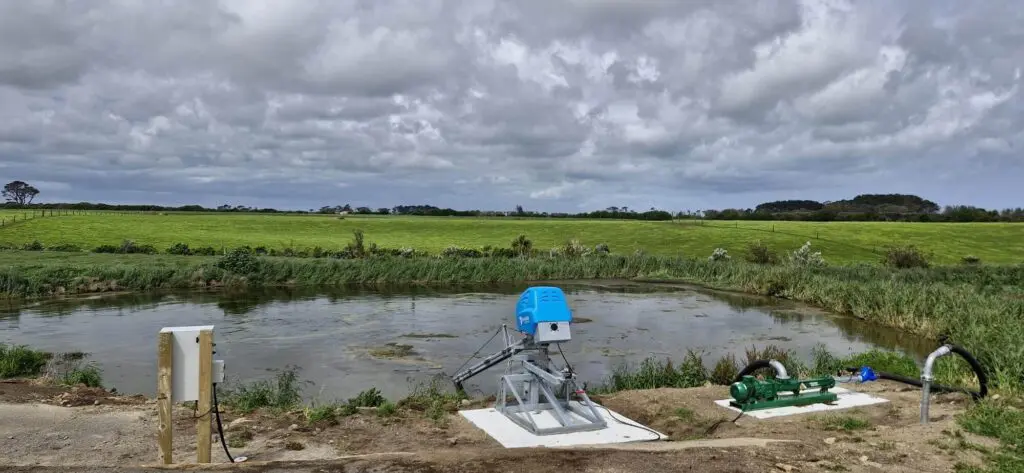

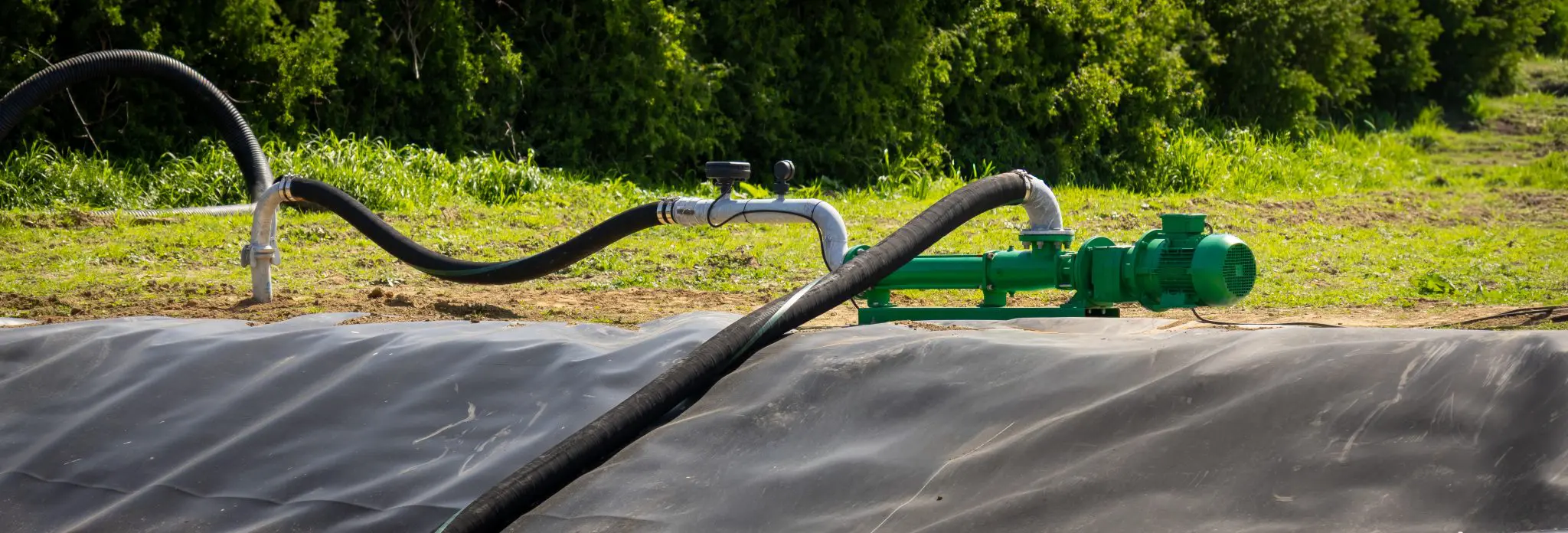

Nevada Hero Progress Cavity Effluent pump on side of pond with Electric Stirrer and Taranaki Maunga in background

Progressive Cavity Pumps

Nevada’s heavy-duty progressive cavity (PC) pump kits are built to handle dairy effluent irrigation and proven as the best on the market. With high pumping efficiency and reduced operating costs, you’ll be saving time and money in no time.
PROGRESS CAVITY PUMPS

Better Pumps, Smarter Choice

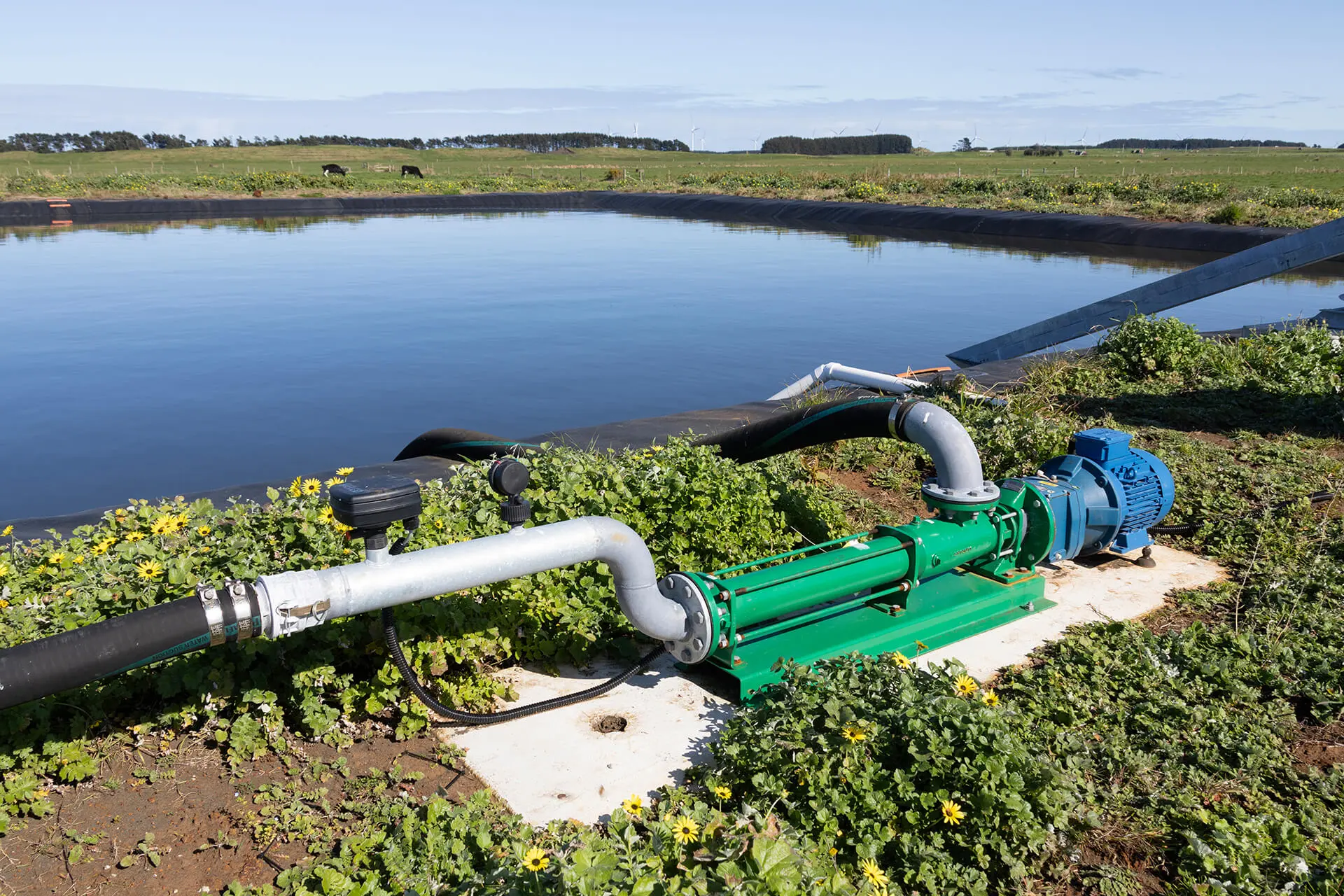

Progressive cavity effluent pumps have a lot of advantages over floating pumps. For a start, they are a lot more efficient. They are at the side of the pond, so access is much simpler and safer, which means servicing is easier. You also use less power to get the same output, which, over the year, is money in your pocket. On top of that, the pump gives you a constant volume.

There are no surprises; it doesn’t matter how far the effluent has to travel, you have a uniform flow.

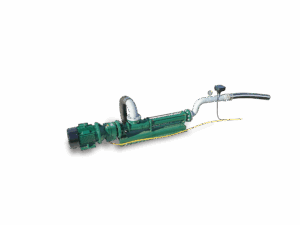

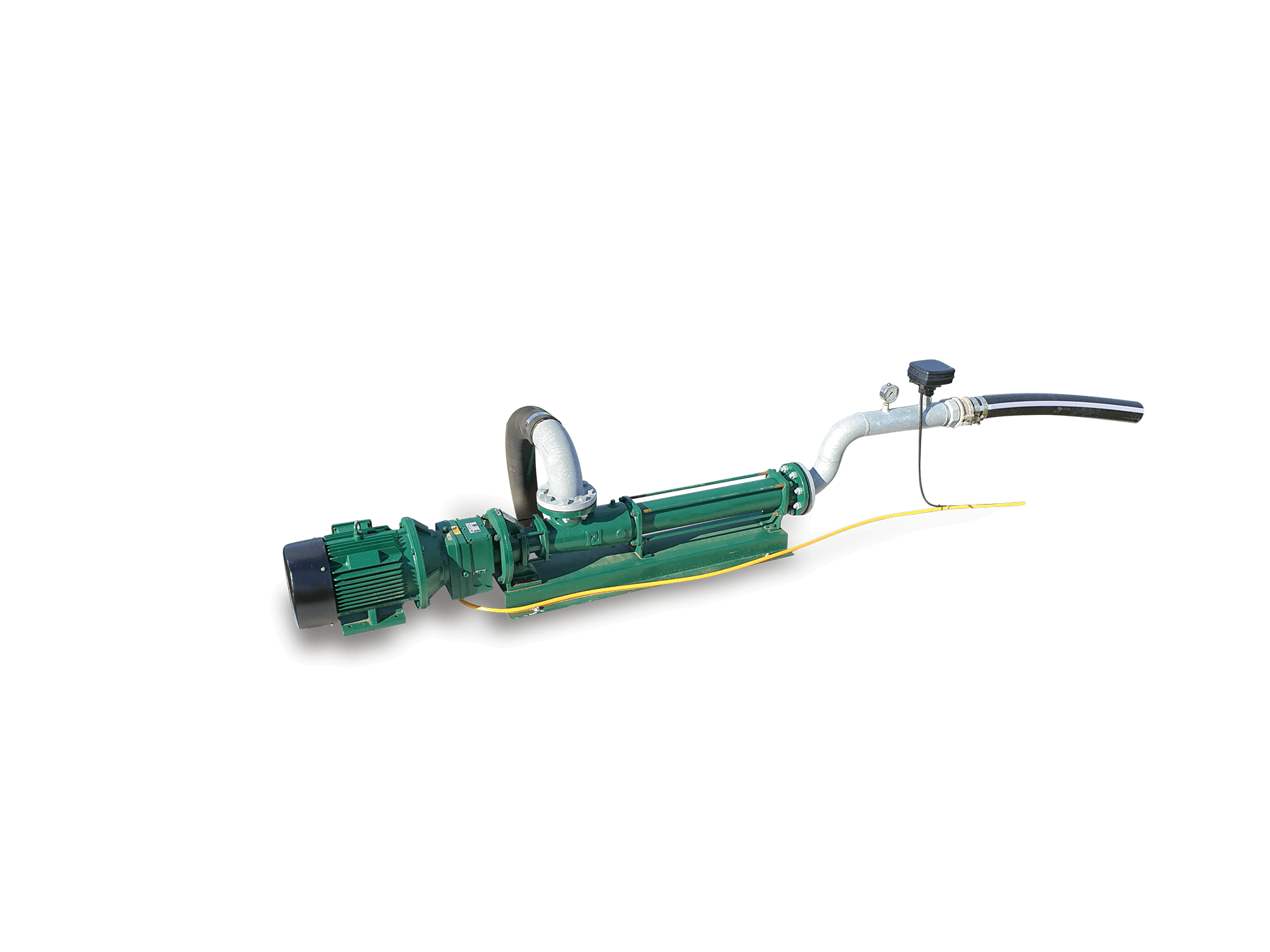

Complete and ready to install, each unit includes:

  • Galvanised head works
  • Intelligent controller unit

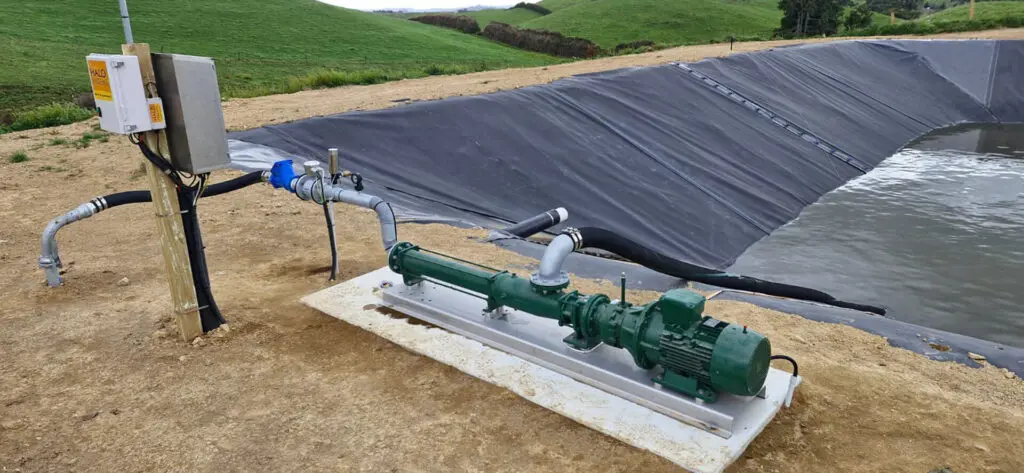

  • Suction hose and base mount ready to be mounted to concrete
  • Outlet pipe connection
Price from: $17,490+GST

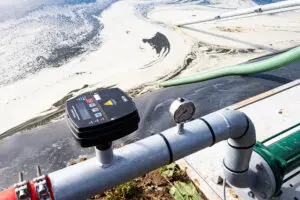

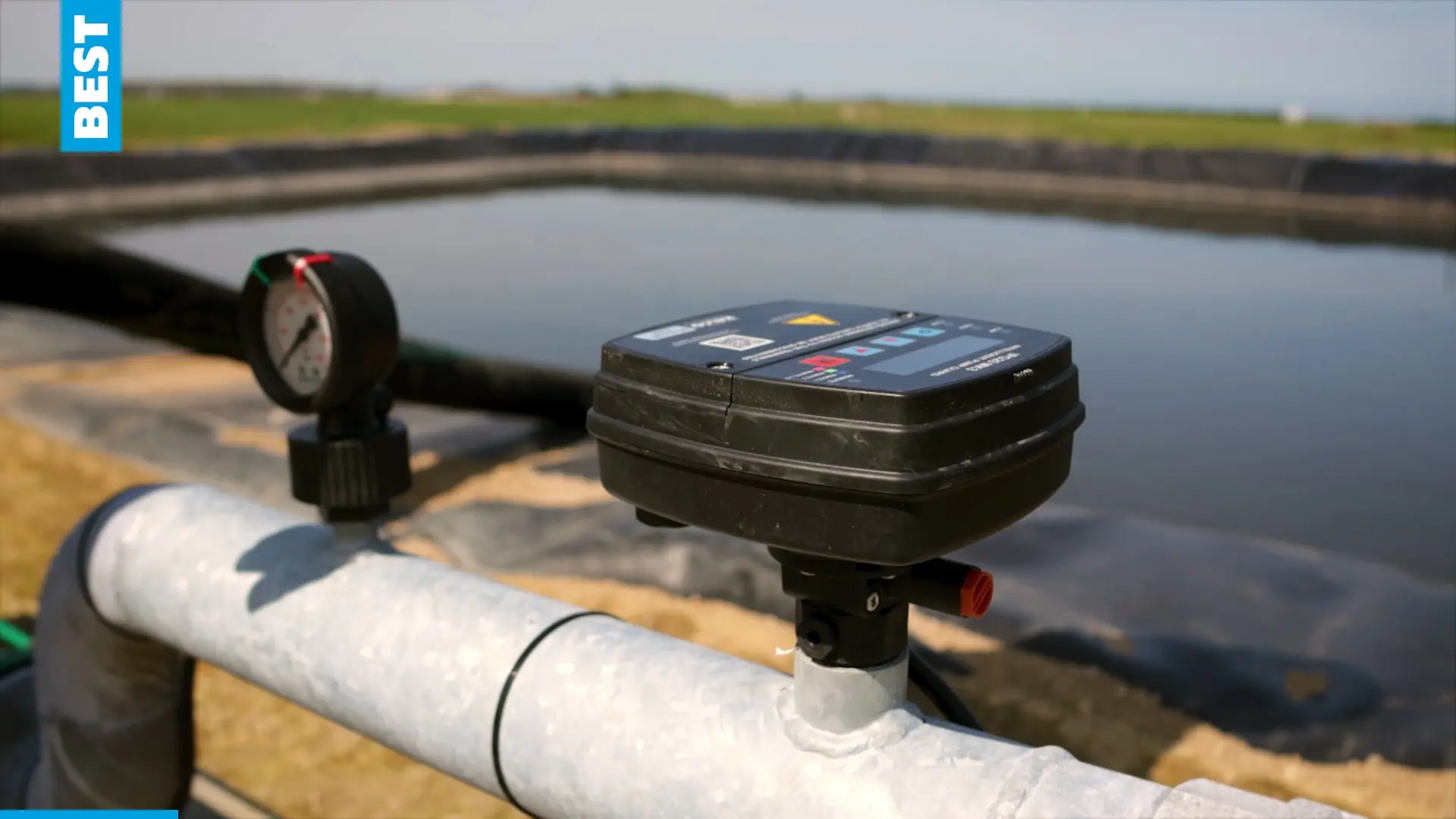

Intelligent Pump Controller

Nevada PC Pumps are all fitted with an Intelligent Pump Controller. Equipped with advanced sensors, this controller swiftly detects and responds to blockages and run-dry events, shutting the pump down immediately and automatically, preventing damage to the pump.

The other great feature with these controllers is their ability to be coupled with the auto shut-off valve on your irrigator. When the irrigator gets to the end of it’s run, the shut off valve closes and the controller shuts the pump down automatically, this prevents the irrigator spinning at the end of the run on the spot and also avoids ponding.

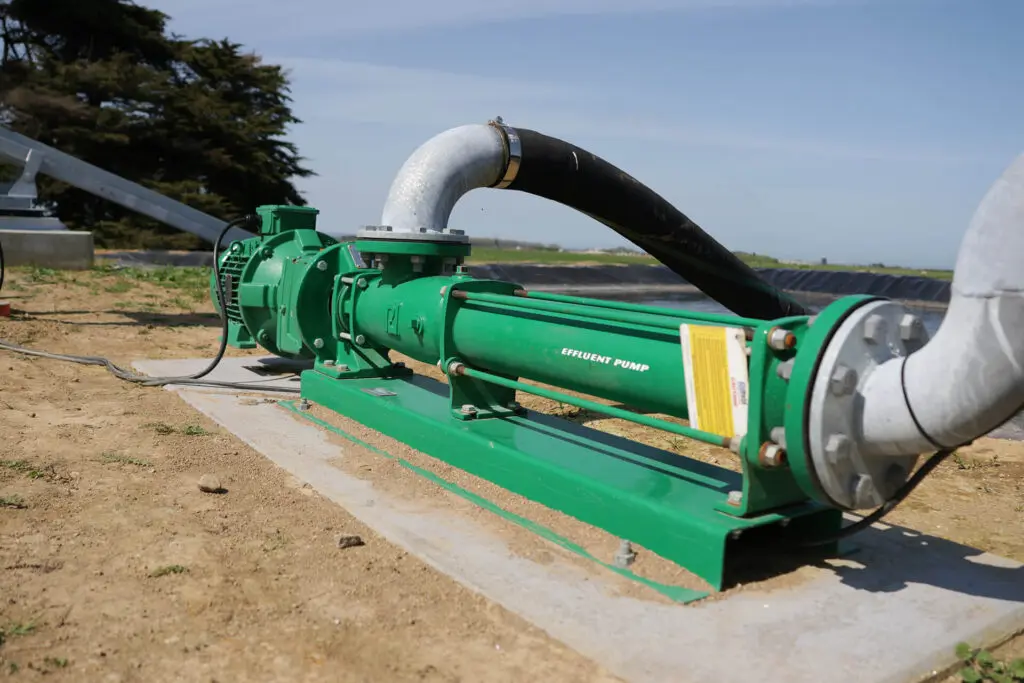

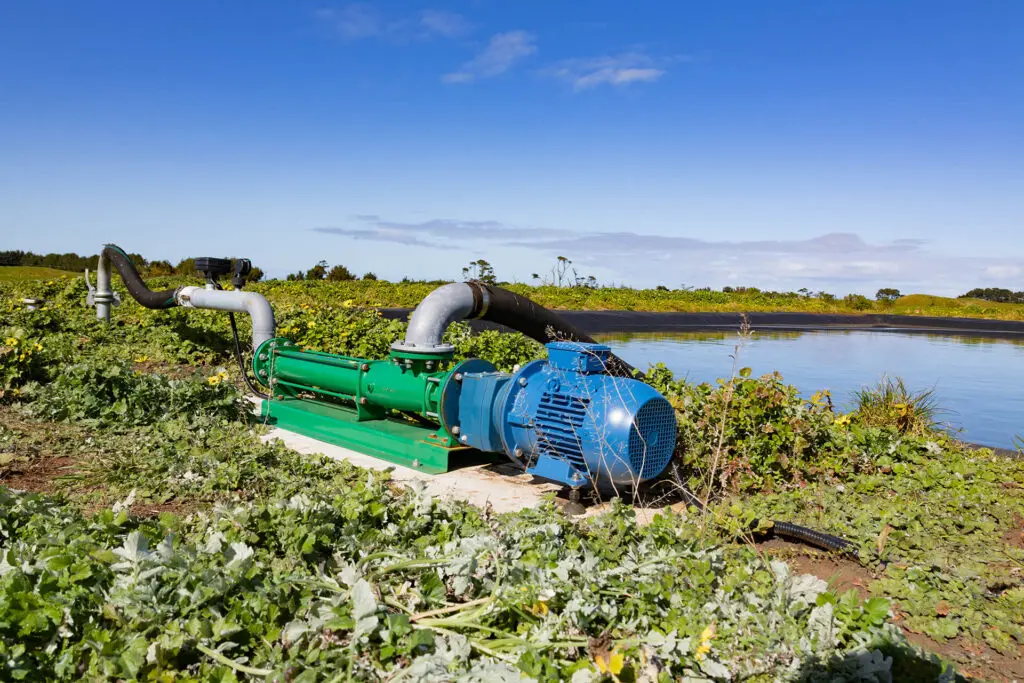

Progressive Cavity Effluent Pump

Benefits

  • Versatile and suitable for various effluent management systems
  • High efficiency with low power requirements
  • Even application with constant flow rate
  • Robust construction and low running speed
  • Low maintenance and reduced operating costs

Features

  • Model options ranging from 3 to 15kW (4 to 20HP)
  • Duty capacity up to 10L/sec and maximum pressure of 11 bar (160 psi)
  • Suitable for shore-mounting applications with end-suction lift up to 6m
  • Ideal for screened or settled effluent with soft solids

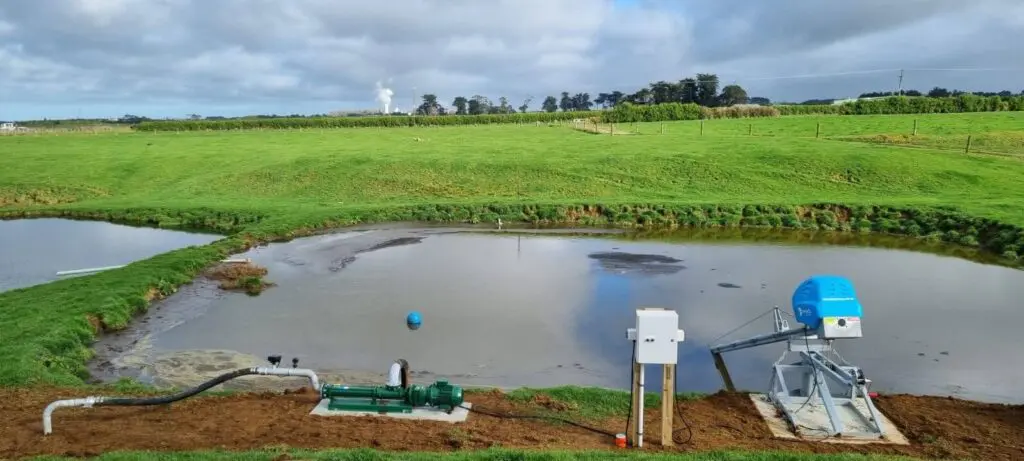

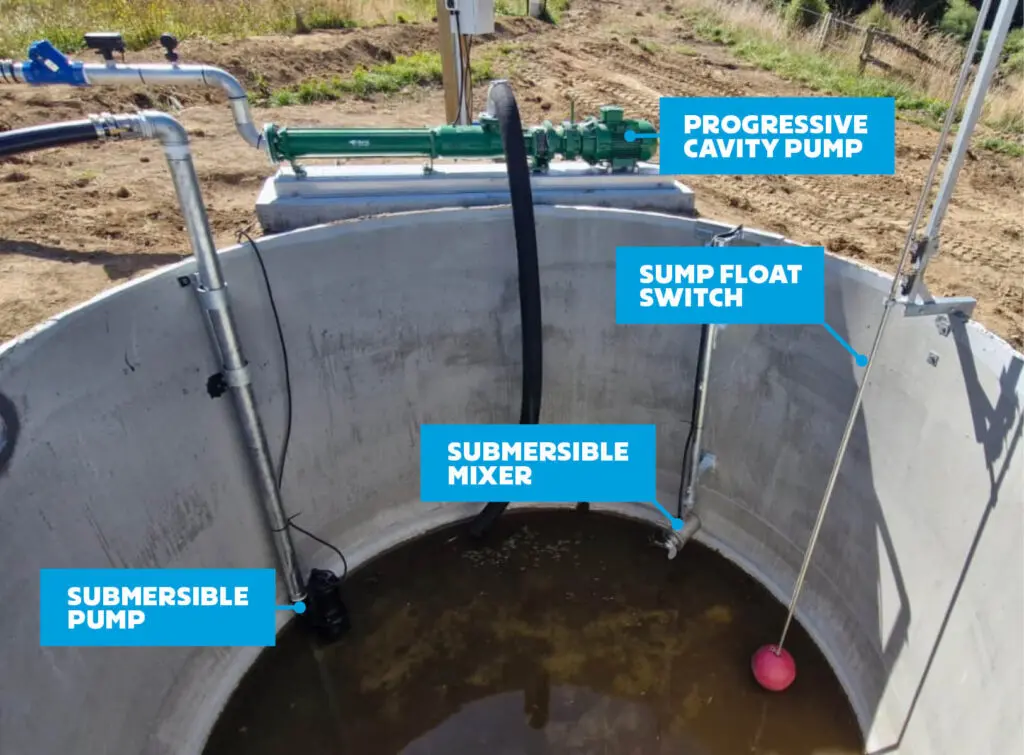

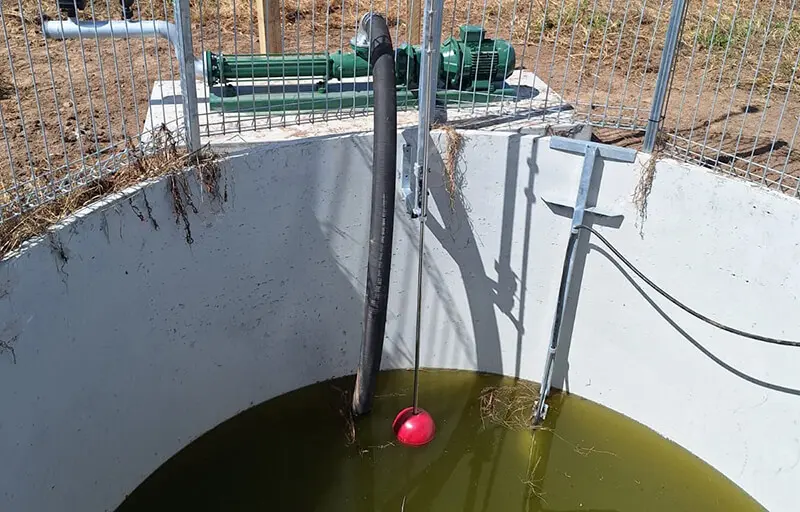

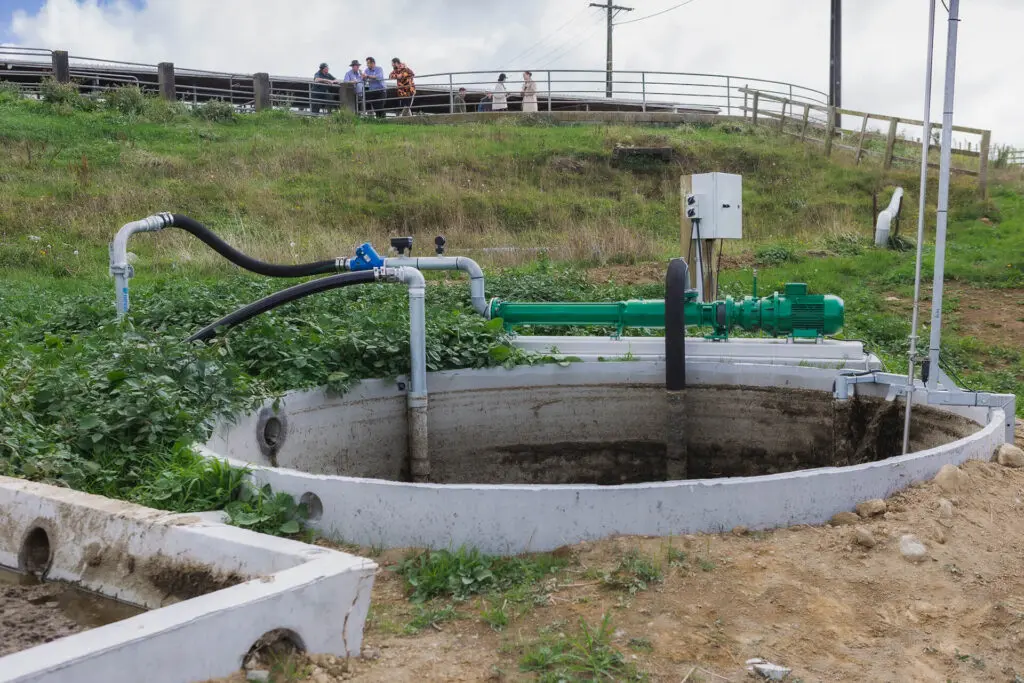

Nevada Sump Setup

Gallery

Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11

Technical Specs

2060
  • Flow20m3/h
  • Pressure60H(m)
  • Power Requirements5.5kW
  • Flange Size80mm
  • Solids (Hard/Soft)9.6/38mm
1890
  • Flow18m3/h
  • Pressure90H(m)
  • Requirements7.5kW
  • Flange Size100mm
  • Solids (Hard/Soft)12/48mm
2690
  • Flow26m3/h
  • Pressure90H(m)
  • Requirements11kW
  • Flange Size100mm
  • Solids (Hard/Soft)12/48mm
3690
  • Flow36m3/h
  • Pressure90H(m)
  • Requirements15kW
  • Flange Size125mm
  • Solids (Hard/Soft)15/60mm
29100
  • Flow29m3/h
  • Pressure100H(m)
  • Requirements15kW
  • Flange Size125mm
  • Solids (Hard/Soft)15/60mm

We’re Here For You

Nevada slurry tankers & stirrers are high-quality and trusted by New Zealand farmers for safety and reliability. That is why they are supported with a two year warranty, and backed by customer service that is second to none.

Related Videos

Discover engaging videos and media showcasing our equipment, success stories, and best practices in dairy effluent management.

PTO vs Electric Effluent Systems

PTO vs Electric Effluent Systems

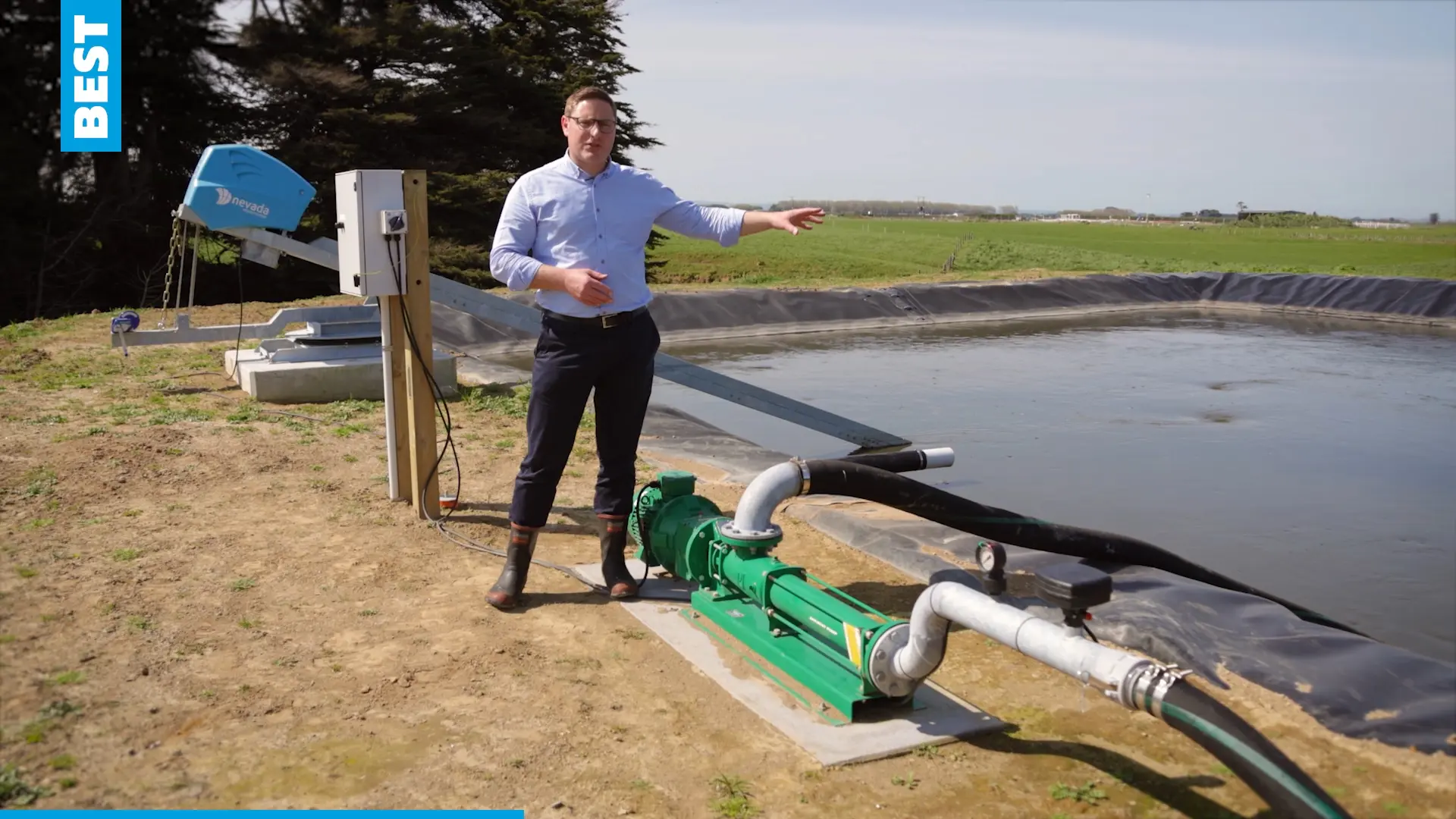

BEST: PC Pump Features
